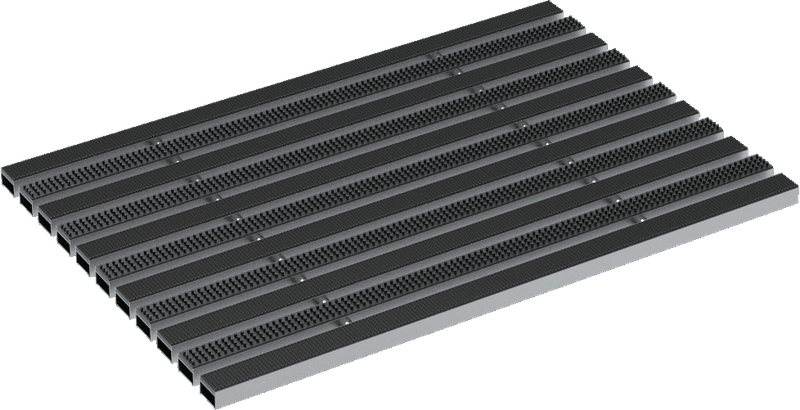

Aluminium grating
trimmed with brushes + rubber strips
Length: 60, 75, 100 cm
Load class: A15
Matching channel body
Load class:
A15
Load class:
A15
Load class:
A15
SELF comfort boot scrapers
In order to keep entry areas to home clean and dry and for a presentable design, all ANRIN SELF comfort boot scrapers are integrated into the new ground surface. As a result, dirt always remains outside your door, even under heavy demands. Modern diamond or mesh grating made of galvanised steel and aluminium grating with rubber or needle-felt strips offer the right solution for every use.

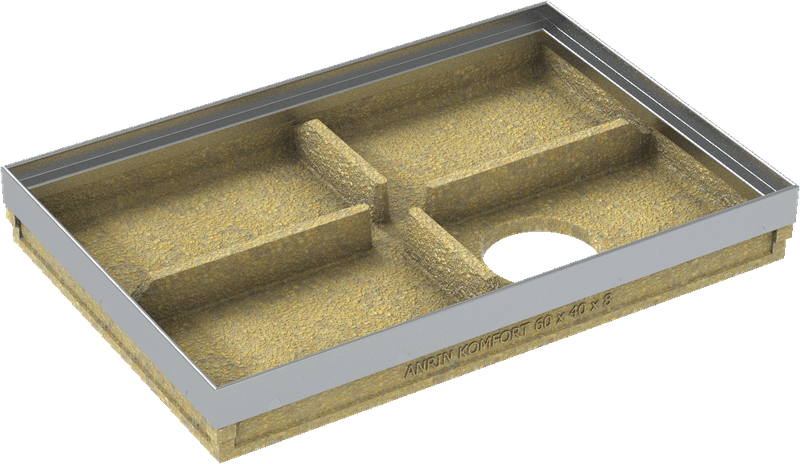

| SELF comfort boot scrapers (60 x 40 mm) product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 60 cm |
| Width | 40 cm |
| Height | 8 cm |
| Weight | 11.7 kg |
| Grating | Aluminium grating, Diamond grating, Mesh grating |

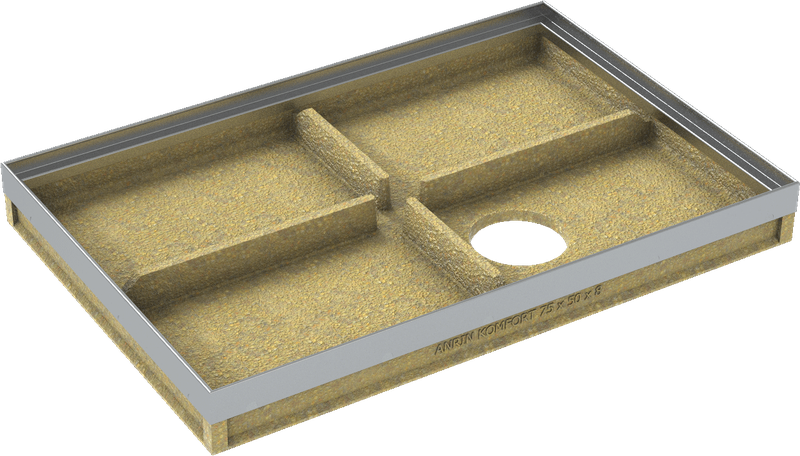

| SELF comfort boot scrapers (75 x 50 mm) product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 75 cm |
| Width | 50 cm |
| Height | 8 cm |
| Weight | 19.7 kg |
| Grating | Aluminium grating, Diamond grating, Mesh grating |

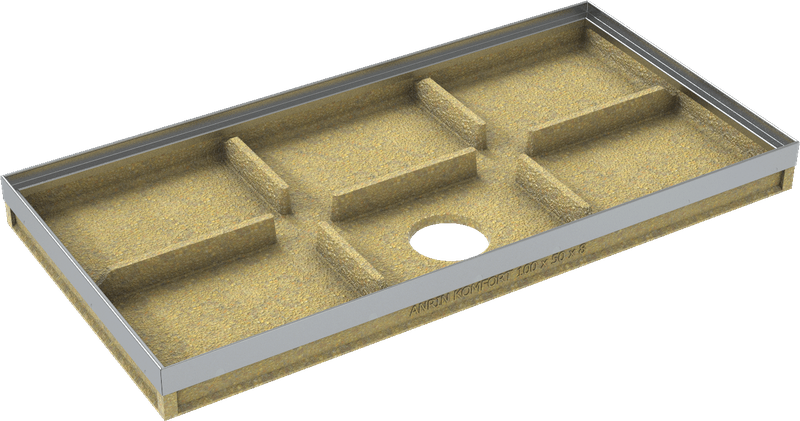

| SELF comfort boot scrapers (100 x 50 mm) product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 100 cm |
| Width | 50 cm |
| Height | 8 cm |
| Weight | 22.9 kg |
| Grating | Aluminium grating, Diamond grating, Mesh grating |
SELF Comfort boot scrapers installation instructions
SELF Comfort boot scrapers in 3 practical sizes
The following installation instructions provide schematic representations. These are intended as examples and are non-binding. The information provided here is based on our extensive experience in civil engineering and road construction as well as the current state-of-the-art. Irrespective of this, planners and installers are obliged to check the suitability of the products and the installation instructions. The details provided as examples are simplified suggestions. The element design needs to be adapted to the specific building.
Important: Insert gratings during installation.
1.
Excavate trench. Backfill crushed stone or in-situ concrete pad and attach connecting pipe, where applicable.
2.
Position the scraper box on the crushed stone or in-situ concrete pad. Where applicable, connect the pipeline and align to the correct height.
3.
Insert the cover grating and install the surrounding floor covering.
Instructions and Regulations
Guidelines and regulations
The current guidelines and regulations of the state-of-the-art technology must be observed for the installation.
For example, these are:
DIN EN 1433 „Drainage channels for vehicular and pedestrian areas“
DIN 19580 „Drainage channels for vehicular and pedestrian areas“
RStO „Guidelines for the standardisation of the superstructure of vehicular areas“
DIN EN 206-1 „Concrete. Specification, performance, production and conformity“
DIN EN 1045-2 „Concrete, reinforced and prestressed concrete structures. Part 2: Concrete – Specification, properties,
production and conformity; Application rules for DIN EN 206-1“
