The grate is representative of the entire design line.

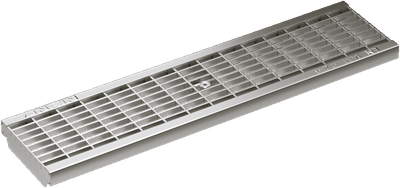

Mesh grating (MW 30 x 10 mm)
Material: galvanised steel
Length: 50, 100 cm
Load class: C250
Length: 50, 100 cm
Load class: C250
Matching channel body
KE-100 Reinforced edge channel
Load class:
A15, B125, C250, D400*, E600*
Load class:
A15, B125, C250, D400*, E600*
KE-100 Reinforced edge channel
Load class:
A15, B125, C250, D400*, E600*
Load class:
A15, B125, C250, D400*, E600*
KE-100 KTL Reinforced edge channel
Load class:
A15, B125, C250, D400*, E600*
Load class:
A15, B125, C250, D400*, E600*
KC-100 Reinforced edge channel
Load class:
A15, B125, C250
Load class:
A15, B125, C250
KF-100 Reinforced edge channel
Load class:
A15, B125, C250, D400*, E600*
Load class:
A15, B125, C250, D400*, E600*
ANRIN reinforced edge channels
A high-tech channel system with all the details for efficient line drainage in private residential construction as well as in commercial construction and urban development. The name comes from the steel or stainless steel frames integrated into the channel profile. They protect the edge of the channel from damage and wear while also providing stability for the cover grating. This dimensionally stable and weather-proof frame can withstand the particularly high loads in traffic areas, as can occur in depots and on public roads. For variable installation of the channel elements, different types of channels can be combined within the same system. For example, channels with premoulded indents for T, corner and cross connections, or channels with an integrated vertical pipe socket to connect to a drainage system are available. The reinforced edge channels in nominal widths of 100, 150, 200 and 300 are available for the efficient drainage of rainwater from sealed surfaces.
| KE-100 Reinforced edge channel product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 50 / 100 cm |
| Width | 13.6 cm |
| Height | 6.0 cm. 8.0 cm. 10.0 cm / 15.0 - 25.0 cm |
| Weight | 9.5 - 25.5 kg |
| Nominal width | 100 |
| Joint formation | UNILINK®- Joint |
| Clasp | TwistLock fastening |
| Load capacity | A15 (test force 15 kN) to E600 (test force 600 kN) |
| Grating | CELTIC, Design grating WIRE, LEAF, Longitudinal–bar grating, Longitudinal profile grating, Mesh grating (MW 20 x 14 mm), Perforated grating, Slotted grating HEELGUARD, Slotted grating MASSIV 32, Slotted grating OvalGrip Design, Slotted grating OvalGrip Design, Slotted grating OvalGrip Design, Slotted grating SW 10, Slotted steel grating and double slotted steel grating, Slotted steel grating MASSIV 32 |
Channel dimensions for KE-100
Accessories dimensions for KE-100 sump unit
Installation instructions KE-100
ANRIN reinforced channel system made of polymer concrete
ANRIN drainage systems are designed to drain precipitation water safely and quickly. In addition, the structural elements have the task of absorbing static and dynamic loads resulting from traffic-related stresses and discharging them into the surrounding soil.
When selecting, planning and installing ANRIN drainage systems, the following technical regulations must be observed in their currently valid version.
The following installation instructions are schematic representations. They are exemplary and non-binding. The information given here is based on our many years of experience in civil engineering and road construction and on the current state of the art. Irrespective of this, planners and processors are in any case obliged to check the suitability of the products and the installation instructions. The exemplary details are simplified design proposals. Construction superstructures must be redesigned for the specific project.
Important: Insert grates during installation.
1.
Excavate the trench. Place base course and compact. Concrete bed (C 12/15 to class C250 ) on the base course. Add to the base course.
2.
Connect pipe connections to the pipeline.
3.
Place the first channel element and, if necessary, the sump unit on the concrete bed. Align components on string.
4.
Attach end caps.
5.
Complete the string and align components to string.
6.
Pour foundation concrete along the channel flank.
7.
Lay the top layer.
8.
The covering should connect at least 4 mm higher than the cover grate.
Instructions and Regulations
Guidelines and regulations
The current guidelines and regulations of the state-of-the-art technology must be observed for the installation.
For example, these are:
DIN EN 1433 „Drainage channels for vehicular and pedestrian areas“
DIN 19580 „Drainage channels for vehicular and pedestrian areas“
RStO „Guidelines for the standardisation of the superstructure of vehicular areas“
DIN EN 206-1 „Concrete. Specification, performance, production and conformity“
DIN EN 1045-2 „Concrete, reinforced and prestressed concrete structures. Part 2: Concrete – Specification, properties,
production and conformity; Application rules for DIN EN 206-1“
| KE-100 Reinforced edge channel product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 50 / 100 cm |
| Width | 13.6 cm |
| Height | 6.0 cm. 8.0 cm. 10.0 cm / 15.0 - 25.0 cm |
| Weight | 9.5 - 25.5 kg |
| Nominal width | 100 |
| Joint formation | UNILINK®- Joint |
| Clasp | TwistLock fastening |
| Load capacity | A15 (test force 15 kN) to E600 (test force 600 kN) |
| Grating | Slotted grating HEELGUARD, Slotted steel grating and double slotted steel grating |
Channel dimensions for KE-100
ANRIN UNILINK®-Joint
The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!
The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!
ANRIN TwistLock fastening
Decades of experience and thorough product development in the fields of installation, maintenance and cleaning of drainage systems have produced convincing solutions for durable closure technologies.
ANRIN grate closures are optimized for the respective load classes and combine safety and brand quality with functional design.
The TwistLock closure finds its application in grate designs for channels of nominal width 100 mm.
Advantages:
· Put in place – one rotation – fixed
· Assembly without special tools
· No rattling, no loosening
· No disruptive bars in the channel interior area
· Maintenance-friendly
· Resistant to corrosion
Accessorie for KE-100
Channel body
100 cm
with pipe socket
KE-100
Channel body
KE-100
End cap
closed
KE-100
End cap
with DA / OD 110 pipe socket
KE-100
Pipe socket
KE-100
Step connector
KE-100
Sump unit
with dirt trap bucket
DA / OD 110/160 NBR seal rings
KE-100
Accessories dimensions for KE-100 sump unit
Installation instructions KE-100
ANRIN reinforced channel system made of polymer concrete
ANRIN drainage systems are designed to drain precipitation water safely and quickly. In addition, the structural elements have the task of absorbing static and dynamic loads resulting from traffic-related stresses and discharging them into the surrounding soil.
When selecting, planning and installing ANRIN drainage systems, the following technical regulations must be observed in their currently valid version.
The following installation instructions are schematic representations. They are exemplary and non-binding. The information given here is based on our many years of experience in civil engineering and road construction and on the current state of the art. Irrespective of this, planners and processors are in any case obliged to check the suitability of the products and the installation instructions. The exemplary details are simplified design proposals. Construction superstructures must be redesigned for the specific project.
Important: Insert grates during installation.
1.
Excavate the trench. Place base course and compact. Concrete bed (C 12/15 to class C250 ) on the base course. Add to the base course.
2.
Connect pipe connections to the pipeline.
3.
Place the first channel element and, if necessary, the sump unit on the concrete bed. Align components on string.
4.
Attach end caps.
5.
Complete the string and align components to string.
6.
Pour foundation concrete along the channel flank.
7.
Lay the top layer.
8.
The covering should connect at least 4 mm higher than the cover grate.
Instructions and Regulations
Guidelines and regulations
The current guidelines and regulations of the state-of-the-art technology must be observed for the installation.
For example, these are:
DIN EN 1433 „Drainage channels for vehicular and pedestrian areas“
DIN 19580 „Drainage channels for vehicular and pedestrian areas“
RStO „Guidelines for the standardisation of the superstructure of vehicular areas“
DIN EN 206-1 „Concrete. Specification, performance, production and conformity“
DIN EN 1045-2 „Concrete, reinforced and prestressed concrete structures. Part 2: Concrete – Specification, properties,
production and conformity; Application rules for DIN EN 206-1“
| KE-100 KTL Reinforced edge channel product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 50 / 100 cm |
| Width | 13.6 cm |
| Height | 6.0 cm. 8.0 cm. 10.0 cm / 16.0 - 26.0 cm |
| Weight | 9.5 - 25.5 kg |
| Nominal width | 100 |
| Joint formation | UNILINK®- Joint |
| Clasp | TwistLock fastening |
| Load capacity | A15 (test force 15 kN) to E600 (test force 600 kN) |
ANRIN UNILINK®-Joint
The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!
The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!
ANRIN TwistLock fastening
Decades of experience and thorough product development in the fields of installation, maintenance and cleaning of drainage systems have produced convincing solutions for durable closure technologies.
ANRIN grate closures are optimized for the respective load classes and combine safety and brand quality with functional design.
The TwistLock closure finds its application in grate designs for channels of nominal width 100 mm.
Advantages:
· Put in place – one rotation – fixed
· Assembly without special tools
· No rattling, no loosening
· No disruptive bars in the channel interior area
· Maintenance-friendly
· Resistant to corrosion
Accessories
Channel body
100 cm
with pipe socket
KE-100 KTL
Channel body
KE-100 KTL
End cap
closed
KE-100 KTL
End cap
with DA / OD 110 pipe socket
KE-100 KTL
Pipe socket
KE-100 KTL
Seal set
KE-100 KTL
Step connector
KE-100 KTL
Sump unit
with dirt trap bucket
DA / OD 110/160 NBR seal rings
KE-100 KTL
| KC-100 Reinforced edge channel product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 100 cm |
| Width | 13 cm |
| Height | 10 - 15 cm |
| Weight | 8.3 - 12.4 kg |
| Nominal width | 100 |
| Joint formation | UNILINK®- Joint |
| Clasp | TwistLock fastening |
Channel dimensions for KC-100
ANRIN UNILINK®-Joint
The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!
The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!
ANRIN TwistLock fastening
Decades of experience and thorough product development in the fields of installation, maintenance and cleaning of drainage systems have produced convincing solutions for durable closure technologies.
ANRIN grate closures are optimized for the respective load classes and combine safety and brand quality with functional design.
The TwistLock closure finds its application in grate designs for channels of nominal width 100 mm.
Advantages:
· Put in place – one rotation – fixed
· Assembly without special tools
· No rattling, no loosening
· No disruptive bars in the channel interior area
· Maintenance-friendly
· Resistant to corrosion
Accesseorie for KC-100
End cap
with DA / OD 110 pipe socket
KC-100
End cap
closed
KC-100
Pipe socket
KC-100
Sump unit
with dirt trap bucket
DA / OD 110/160 NBR seal rings
KC-100
Accessories dimensions for KC-100 sump unit
Installation instructions KE-100
ANRIN reinforced channel system made of polymer concrete
ANRIN drainage systems are designed to drain precipitation water safely and quickly. In addition, the structural elements have the task of absorbing static and dynamic loads resulting from traffic-related stresses and discharging them into the surrounding soil.
When selecting, planning and installing ANRIN drainage systems, the following technical regulations must be observed in their currently valid version.
The following installation instructions are schematic representations. They are exemplary and non-binding. The information given here is based on our many years of experience in civil engineering and road construction and on the current state of the art. Irrespective of this, planners and processors are in any case obliged to check the suitability of the products and the installation instructions. The exemplary details are simplified design proposals. Construction superstructures must be redesigned for the specific project.
Important: Insert grates during installation.
1.
Excavate the trench. Place base course and compact. Concrete bed (C 12/15 to class C250 ) on the base course. Add to the base course.
2.
Connect pipe connections to the pipeline.
3.
Place the first channel element and, if necessary, the sump unit on the concrete bed. Align components on string.
4.
Attach end caps.
5.
Complete the string and align components to string.
6.
Pour foundation concrete along the channel flank.
7.
Lay the top layer.
8.
The covering should connect at least 4 mm higher than the cover grate.
Instructions and Regulations
Guidelines and regulations
The current guidelines and regulations of the state-of-the-art technology must be observed for the installation.
For example, these are:
DIN EN 1433 „Drainage channels for vehicular and pedestrian areas“
DIN 19580 „Drainage channels for vehicular and pedestrian areas“
RStO „Guidelines for the standardisation of the superstructure of vehicular areas“
DIN EN 206-1 „Concrete. Specification, performance, production and conformity“
DIN EN 1045-2 „Concrete, reinforced and prestressed concrete structures. Part 2: Concrete – Specification, properties,
production and conformity; Application rules for DIN EN 206-1“
| KF-100 Reinforced edge channel product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 50 / 100 cm |
| Width | 14.4 cm |
| Height | 10.0 cm. 15.0 - 20.0 cm. 25 cm |
| Weight | 17 - 22.4 kg |
| Nominal width | 100 |
| Joint formation | UNILINK®- Joint |
| Clasp | TwistLock fastening |
| Load capacity | A15 (test force 15 kN) to E600 (test force 600 kN) |
Channel dimensions for KF-100
ANRIN UNILINK®-Joint
The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!
The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!
ANRIN TwistLock fastening
Decades of experience and thorough product development in the fields of installation, maintenance and cleaning of drainage systems have produced convincing solutions for durable closure technologies.
ANRIN grate closures are optimized for the respective load classes and combine safety and brand quality with functional design.
The TwistLock closure finds its application in grate designs for channels of nominal width 100 mm.
Advantages:
· Put in place – one rotation – fixed
· Assembly without special tools
· No rattling, no loosening
· No disruptive bars in the channel interior area
· Maintenance-friendly
· Resistant to corrosion
Accessorie for KF-100
Channel body
100 cm
with pipe socket
KF-100
Channel body
KF-100
End cap
closed
KF-100
End cap
with DA / OD 110
poured pipe socket
KF-100
Pipe socket
KF-100
Seal set
KF-100
Step connector
KF-100
Sump unit
outlets DA/OD 110 and 160
with shaped NBR-rings
KF-100
Accessories dimensions for KF-100 sump unit
