The grate is representative of the entire design line.
Slotted grating HEELGUARD
Material: ductile-iron GJS (black coating)
Length: 50 cm
Load class: D400*
Length: 50 cm
Load class: D400*
Matching channel body
KE-200 Reinforced edge channel
Load class:
A15, B125, C250, D400*, E600*
Load class:
A15, B125, C250, D400*, E600*
KE-200 Reinforced edge channel
Load class:
A15, B125, C250, D400*, E600*
Load class:
A15, B125, C250, D400*, E600*
KE-200 KTL Reinforced edge channel
Load class:
A15, B125, C250, D400*, E600*
Load class:
A15, B125, C250, D400*, E600*
ANRIN reinforced edge channels
A high-tech channel system with all the details for efficient line drainage in private residential construction as well as in commercial construction and urban development. The name comes from the steel or stainless steel frames integrated into the channel profile. They protect the edge of the channel from damage and wear while also providing stability for the cover grating. This dimensionally stable and weather-proof frame can withstand the particularly high loads in traffic areas, as can occur in depots and on public roads. For variable installation of the channel elements, different types of channels can be combined within the same system. For example, channels with premoulded indents for T, corner and cross connections, or channels with an integrated vertical pipe socket to connect to a drainage system are available. The reinforced edge channels in nominal widths of 100, 150, 200 and 300 are available for the efficient drainage of rainwater from sealed surfaces.
| KE-200 Reinforced edge channel product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 50 / 100 cm |
| Width | 26.4 cm |
| Height | 13. 29 cm |
| Weight | 24.0 - 45.0 kg |
| Nominal width | 200 |
| Joint formation | UNILINK®- Joint |
| Clasp | SnapLock fastening |
| Load capacity | A15 (test force 15 kN) to E600 (test force 600 kN) |
| Grating | Mesh grating (MW 30 x 20 mm), Slotted grating HEELGUARD, Slotted grating OvalGrip Design |
Channel dimensions for KE-200
Accessories dimensions for KE-200 sump unit

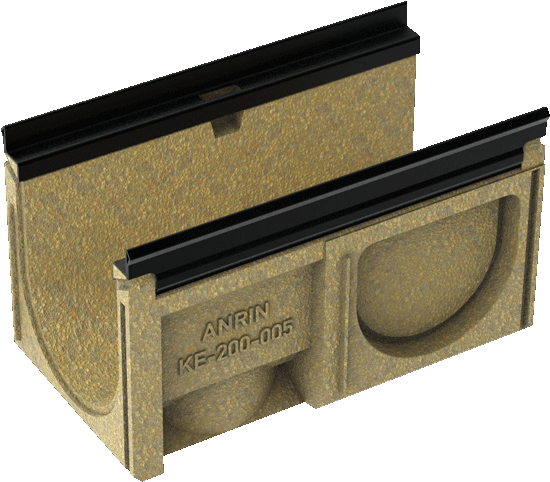

| KE-200 Reinforced edge channel product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 50 / 100 cm |
| Width | 26.4 cm |
| Height | 13. 29 cm |
| Weight | 24.0 - 45.0 kg |
| Nominal width | 200 |
| Joint formation | UNILINK®- Joint |
| Clasp | SnapLock fastening |
| Load capacity | A15 (test force 15 kN) to E600 (test force 600 kN) |
| Grating | Mesh grating |
Channel dimensions for KE-200
ANRIN UNILINK®-Joint
The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!
The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!
ANRIN SnapLock fastening
Decades of experience and thorough product development in the areas of assembly, maintenance and cleaning of drainage systems have given rise to outstanding solutions for durable fastening technology.
ANRIN grating fastenings are optimised for the respective load class and combine safety and brand quality with functional design.
The TwistLock fastening is used for grating types for channels with a nominal width of 100 mm.
Advantages:
· Put in place – press on – snap in place
· Assembly without special tools
· Impervious to transverse forces
· Non-corrosive stainless steel springs
· Reliable function even when heavily soiled
· Grating and channel body intermesh to form a sturdy unit
Accessorie for KE-200
Channel body
100 cm
with pipe socket
KE-200
Channel body
KE-200
End cap
closed
KE-200
End cap
with DA / OD 160 pipe socket
KE-200
Pipe socket
KE-200
Seal set
KE-200
Step connector
KE-200
Sump unit
with dirt trap bucket
DA / OD 160/200 NBR seal rings
KE-200
Accessories dimensions for KE-200 sump unit

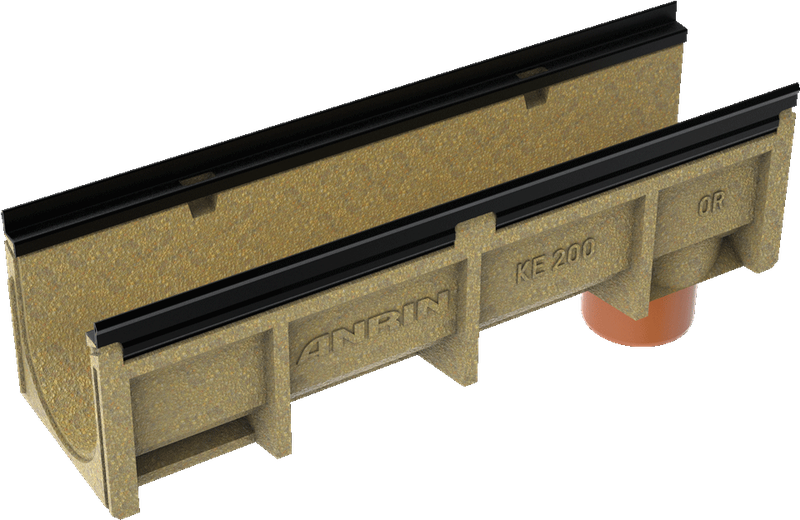

| KE-200 KTL Reinforced edge channel product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 50 / 100 cm |
| Width | 26.4 cm |
| Height | 13.0 cm. 24.0 cm. 29.0 cm. 34.0 cm |
| Weight | 22.2 - 42.4 kg |
| Nominal width | 200 |
| Clasp | SnapLock fastening |
Accessories
Channel body
100 cm
with pipe socket
KE-200 KTL
Channel body
KE-200 KTL
End cap
with DA / OD 160 pipe socket
KE-200 KTL
End cap
closed
KE-200 KTL
Pipe socket
KE-200 KTL
Seal set
KE-200 KTL
Sump unit
with dirt trap bucket
DA / OD 160/200 NBR seal rings
KE-200 KTL
